Professional Cuplock Scaffolding System , Modular Scaffold System VS-CL

Name: Professional Cuplock Scaffolding System Modular Scaffold System VSCL
Brand: ZNLS
Price: 1 USD

Brand Name : ZNLS

Model Number : VS-CL

Place of Origin : China

MOQ : 25 tons

Price : Negotiation

Payment Terms : 30%TT, Balance against copy of BL

Supply Ability : 800 to 1000 tons per month

Delivery Time : 14 to 21 days after deposit

Packaging Details : In bundle or pallets, or by customer demands

Raw Material : Steel tube

Surface treatment : Painted or Galvanized

Standard size : Dia.48mm, Various length

Assembly type : Metal cups to lock

Application : Load bearing system, Working platform or safety system

Auxiliary : Steel plank, Staircase

Contact Now

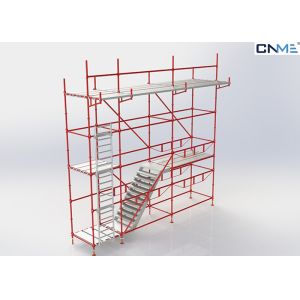

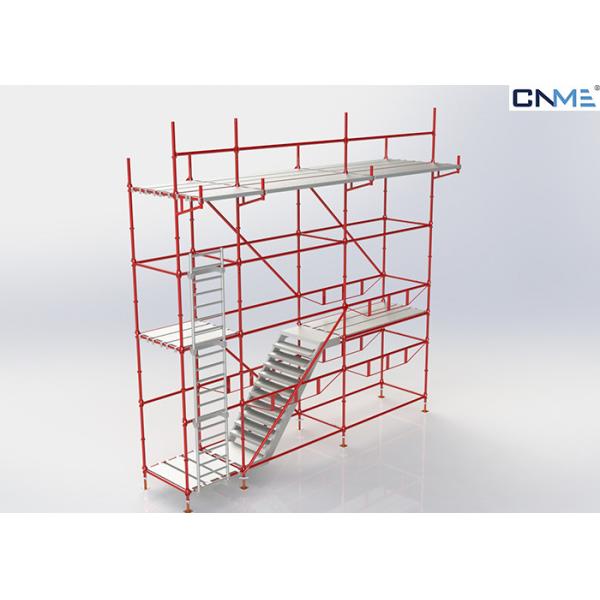

Cup lock scaffolding - Modular system made of Dia.48 high grade steel tube , Painted or Galvanized

Overview

Cup-lock Scaffolding are versatile systems that are used for various forms of access and support structures. Cup lock scaffolding is unique that it provides a way to link four horizontal bars together at once at a central joint. This design reduces assembly time while providing a versatile and strong structure that is safe for workers.

Characteristics

1 . Flexible

2 . Simple operation

3 . Economic

4 . High loading capacity and good stability

Value-added Service

ZNLS will provide relating technical service including formwork & scaffolding proposal drawing, material list, shop drawing, calculation sheet, loading capacity analysis and assembly instruction on site and other after-sale service. Moreover, cargo transport arrangement and tracking, relating import and export documents will be supplied as customs’ requirements.

System introduction

Item	Specification	Tube size
Standard	500mm	Φ48.3x3.25
	1000mm
	1300mm
	1500mm
	1800mm
	2000mm
	2300mm
	3000mm
Ledger	600mm	Φ48.3x3.25
	900mm
	1200mm
	1300mm
	1600mm
	1800mm
	2100mm
	2500mm
Diagonal brace	1300X2000	Φ48.3x3.25
	1800X2000
	2500X2000
	3000X2000
	1500X1800
	According to design or customer demands
Strength ledger	2500mm	Φ48.3x3.25
Cantilever frame		Φ48.3x3.25
